Solderability Test - Principles, Methods, and Applications in Electronics Manufacturing

Introduction

In electronics manufacturing, ensuring strong, reliable solder joints is critical to the performance and longevity of assembled components. The solderability test plays a vital role in evaluating how well metallic surfaces can be wetted by molten solder, directly impacting the integrity of electrical and mechanical connections. This quality control measure helps manufacturers detect issues related to surface oxidation, contamination, or plating defects that may lead to poor solder adhesion.

By implementing a solderability test at various stages—component sourcing, PCB fabrication, and assembly—manufacturers can proactively reduce the risk of solder joint failures in the final product. The solderability test is governed by standardized procedures and criteria defined by industry standards such as IPC and J-STD, ensuring consistency and reliability in results. This article explores the principles, methods, and real-world applications of the solderability test, offering insights into how it enhances quality assurance across modern electronics manufacturing processes.

Defining Solderability and Its Importance

Solderability refers to the ability of a metal surface (component lead, termination, PCB pad) to be wetted by molten solder. Effective wetting involves the formation of a uniform, smooth, unbroken, and adherent film of solder on the base metal. This property is fundamental to creating reliable solder joints, which are the electrical and mechanical "glue" of electronic assemblies. [1]

Soldering Circuit Board of a CCTV Camera

The importance of solderability in electronics manufacturing cannot be overstated. It directly impacts:

• Component Mounting: Proper wetting ensures that components adhere securely to the PCB, forming strong mechanical bonds.

• Assembly Yield: Good solderability minimizes soldering defects like non-wetting and dewetting, reducing the need for costly rework and improving first-pass yield. Poor solderability is a major source of defects and failures.

• Electrical Performance: Proper wetting creates low-resistance connections, vital for signal transmission and power delivery. Poor joints can lead to open circuits or intermittent connections.

• Long-Term Reliability: Solderable surfaces contribute to robust joints that resist thermal cycling and mechanical stress, improving product lifespan. Historically, poor solder connections have been a significant cause of system failures.

Solderability testing verifies whether components and PCB pads retain acceptable wetting characteristics—especially after storage or process exposure. It is considered a destructive test, meaning that the tested electronic components should not be used in final products.

Recommended Reading: Solder Reflow: An In-Depth Guide to the Process and Techniques

Fundamental Principles: Wetting and Interfacial Tension

The formation of a solder joint is governed by the physical phenomenon of wetting, which describes the ability of a liquid (molten solder) to spread over and maintain contact with a solid surface (component lead or PCB pad). This process is driven by the interplay of cohesive forces within the liquid solder and adhesive forces between the solder and the solid substrate.

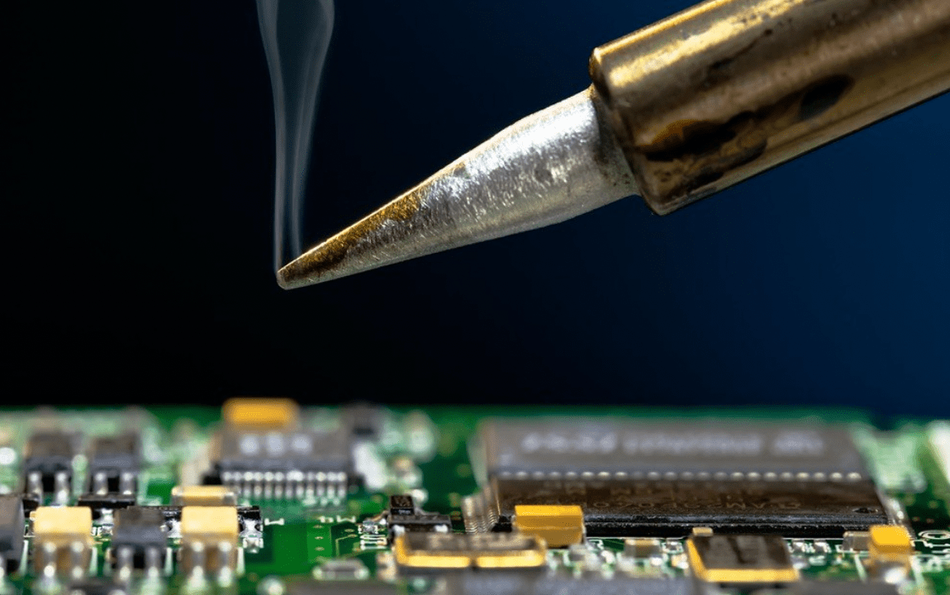

Soldering the Electronic Components onto the PCB using a Soldering Iron

Surface Tension and Interfacial Energy

At the molecular level, molecules within the bulk of a liquid experience balanced attractive forces from neighboring molecules. However, molecules at the surface of a liquid experience a net inward pull because there are fewer molecules above them. This imbalance creates surface tension (γ), often expressed in dynes/cm or Joules/m², which is the tendency of a liquid surface to contract to the minimum possible area, behaving like an elastic membrane. Molten Solder, like other liquids, exhibits surface tension, which influences its tendency to form spherical shapes versus spreading.

When a liquid contacts a solid in the presence of a third phase (typically flux or vapor), interfaces are formed: solid-liquid (SL), liquid-vapor/flux (LV), and solid-vapor/flux (SV). [2] Each interface possesses an interfacial energy (or tension), representing the excess energy per unit area compared to the bulk phases. For wetting to occur, the liquid must spread, increasing the SL interfacial area and decreasing the SV area.

The Wetting Equation (Young's Equation)

The degree of wetting is quantified by the contact angle (θ), the angle formed at the three-phase boundary between the solid surface and the tangent to the surface of the liquid. The relationship between interfacial energies and the equilibrium contact angle is described by Young's Equation:

Let's dissect each component and the underlying assumptions in detail:

1. SV (Solid-Vapor/Flux Interfacial Energy)

This term represents the energy per unit area of the interface between the solid substrate (component lead or PCB pad) and the surrounding vapor or flux environment. A higher SV generally indicates a higher energy surface, which is more conducive to wetting. Contaminants or oxide layers on the solid surface tend to lower SV, hindering wetting and thus poor solderability. The effective fluxing aims to increase the effective SV by cleaning the surface.

2. SL (Solid-Liquid Interfacial Energy)

This term represents the energy per unit area of the interface between the solid substrate and the molten solder. A lower SL signifies a more energetically favorable interaction between the solder and the substrate, promoting wetting. The formation of intermetallic compounds (IMCs) during soldering directly influences SL, often lowering it, as a stable metallurgical bond forms.

3. LV (Liquid-Vapor/Flux Interfacial Energy or Surface Tension of the Solder)

This term represents the energy per unit area of the interface between the molten solder and the surrounding vapor or flux. It is essentially the surface tension of the liquid solder. A lower LV allows the solder to spread more readily, facilitating wetting. Fluxes play a critical role in reducing the surface tension of the molten solder.

4. θe (Equilibrium Contact Angle)

This is the angle formed at the three-phase contact line, measured through the liquid phase, between the tangent to the liquid surface and the solid surface. The magnitude of the equilibrium contact angle is the direct indicator of the degree of wetting and, by extension, solderability:

• θe < 90^∘: Indicates good wetting. The adhesive forces between the solder and the substrate are stronger than the cohesive forces within the solder, causing it to spread.

• θe = 90^∘: Indicates neutral wetting, where adhesive and cohesive forces are balanced.

• θe > 90^∘: Indicates poor or non-wetting. The cohesive forces within the solder are stronger than the adhesive forces, causing the solder to bead up and minimize contact with the substrate.

• θe = 0^∘: Represents complete wetting, where the liquid spreads entirely over the solid surface.

• θe = 180^∘: Represents complete non-wetting, where the liquid forms a perfect sphere and has minimal contact with the solid surface.

Good solderability is indicated when the equilibrium contact angle is less than 90° (typically in the range of 30°–70°), meaning the solder spreads well across the surface. [3] This condition occurs when:

• The adhesive forces (solder to metal surface) are strong.

• The cohesive forces (solder to solder) are relatively weak.

• The solid surface has high surface energy, and the solder has low surface tension.

In practical soldering, the situation is more complex than Young's equation suggests! The reaction between the molten solder and the metallic substrate forms intermetallic compounds (IMCs). This chemical reaction alters the interfacial energies and contributes a chemical free energy component to the wetting process, influencing both the extent and rate of wetting. Flux plays a critical role by cleaning surfaces (removing oxides) and reducing the surface tension of the solder, thereby promoting wetting.

Recommended Reading: Demystifying Soldering Techniques: A Comparison of Wave Soldering and Reflow Soldering

Primary Methods for Solderability Testing

Several methods exist to evaluate solderability, broadly categorized as quantitative (measuring forces or wetting times) and qualitative (visual assessment).

Typical Wetting Balance Curve

The most prevalent methods are the Wetting Balance Test and the Dip and Look Test:

Wetting Balance Test (Quantitative)

The Wetting Balance Test provides a quantitative measure of the solder wetting process by recording the vertical forces acting on a test specimen as it is immersed in and held in a molten solder bath over time. It is considered the most meaningful method for quantitatively assessing solderability.

• Procedure & Equipment:

1. Test Specimen Preparation: The test object, such as a component lead or PCB coupon, is carefully cleaned and coated with a standardized flux. In many cases, preconditioning (such as steam aging for up to 8 hours) is applied to simulate the effects of long-term storage or harsh environments.

2. Mounting: The specimen is mounted to a sensitive force transducer or balance arm capable of detecting micro-Newton level forces.

3. Controlled Immersion: The specimen is lowered at a precise speed and angle into a temperature-controlled, oxide-free solder bath. Both immersion depth and angle are often tightly regulated.

4. Data Collection: The equipment records the net vertical force (buoyancy vs. wetting force) exerted on the specimen over time, generating a wetting curve.

5. Compliance Standards: The method adheres to rigorous international standards, including IEC 60068-2-69, J-STD-002 (Tests E, F, G, E1, F1, G1), and J-STD-003.

• Interpretation of Wetting Curve:

The wetting curve provides multiple data points to evaluate solderability:

1. Initial Dip: Upon immersion, the force initially goes negative due to buoyancy.

2. Wetting Initiation: Once the flux activates and removes oxides, molten solder begins to wet the surface, and the force increases.

3. Zero Crossing: The moment the curve crosses the zero line marks the onset of wetting, corrected for buoyancy.

4. Wetting Rate: Represented by the slope of the curve. A steeper slope indicates rapid solder spread and superior solderability.

5. Maximum Wetting Force: The peak force achieved represents the equilibrium wetting condition. This generally indicates better solderability.

6. Wetting Time: Time taken to reach a certain proportion (e.g., two-thirds) of F (maximum) is often used as a solderability index.

• Dewetting: If the force decreases after reaching Fmax while still immersed, it indicates dewetting. A stable Fmax indicates no dewetting.

• Acceptance Criteria: While primarily used as an engineering tool due to variability and lack of universal pass/fail limits, standards like J-STD-002 and J-STD-003 provide suggested quantitative criteria based on parameters like time to wet, wetting force at specific times (e.g., F at 2s, F at 5s), or time to reach a specific force. IEC 60068-2-69 also provides guidance but emphasizes comparative use.

The precision of the Wetting Balance Test makes it valuable for comparing surface finishes, fluxes, or effects of aging, but requires skilled interpretation and careful equipment calibration.

Dip and Look Test (Qualitative)

The Dip and Look Test is a widely adopted qualitative method, appreciated for its simplicity, low cost, and speed. While it lacks numerical output, it is ideal for routine process monitoring, incoming quality inspection, and field reliability assurance.

Dip and Look Solderability Test

Let's go through its details:

• Procedure:

1. Preconditioning: Test specimens, including component leads and PCB pads, are typically steam-aged (e.g., 8 hours at 93°C with 98% RH) to replicate environmental aging.

2. Application of Flux: An activated rosin flux, as specified in standards like J-STD-002, is applied to promote wetting.

3. Controlled Immersion: The fluxed specimens are dipped into a molten solder bath (e.g., SnPb at 245°C ± 5°C) for a defined dwell time using a mechanized or manual dipper.

4. Post-Dip Handling: After immersion, components are cooled, and flux residues are cleaned off.

5. Visual Inspection: Under 10x to 20x magnification, surfaces are examined for wetting quality and solder coverage.

• Visual Inspection Criteria:

1. The Primary Criterion is the percentage of the critical area covered by a new, continuous, smooth solder coating.

2. Acceptance: Typically requires ≥ 95% coverage for component leads/terminations. J-STD-002 specifies ≥ 80% for exposed pads on packages. J-STD-003 criteria for PCBs vary by finish and class but often target ≥ 95%.

3. Rejection: Defects like non-wetting (exposed base metal), dewetting (irregular solder mounds), and excessive pinholes/voids covering more than the allowed percentage (typically 5%) lead to rejection.

4. Anomalies like surface roughness or dross might warrant a referee verification dip per J-STD-002.

The Dip and Look Test is subjective, relying on visual comparison and interpretation, but its standardized criteria and cost-effectiveness make it suitable for routine quality checks.

Other Solderability Test Methods

• Surface Mount Simulation Test (J-STD-002 Test S/S1, J-STD-003): This test simulates the SMT reflow process. Solder paste is printed onto a substrate (e.g., ceramic plate for components, test coupon for PCBs), the component is placed, and the assembly undergoes a controlled reflow profile. Evaluation is typically visual, assessing wetting on terminations and pads based on criteria similar to Dip & Look (e.g., ≥95% coverage). It's particularly useful for components not suited for dip testing.

• Solder Globule Test (Wetting Balance variant - J-STD-002 Test G/G1, IEC 60068-2-69): Used primarily for leaded components, especially SMDs. Instead of a bath, a precise volume (globule) of molten solder is used on a heated block. The component lead is brought into contact with the globule, and the wetting force/time is measured similarly to the bath method.

• Spread Test (IPC-TM-650 2.4.46, JIS Z 3198-3): Primarily used to evaluate flux activity or solder paste spread characteristics. A defined amount of solder (often a preform) and flux is placed on a standard substrate (e.g., copper or brass coupon) and heated (e.g., floated on a solder bath). The area over which the solder spreads is measured or compared visually.

• Solder Float Test (J-STD-003): Specifically evaluates the solderability of Plated-Through Holes (PTHs) on PCBs. A test coupon with PTHs is fluxed and floated on a molten solder bath for a set time. Acceptance is based on visual inspection of solder fill/wetting within the holes.

These diverse solderability test methods form the foundation of quality assurance in electronics production. Their consistent implementation allows manufacturers to predict, prevent, and resolve soldering issues before products reach end-users, ensuring long-term performance, durability, and reliability.

Recommended Reading: Types of Solder: A Comprehensive Guide for Engineering Professionals

Factors Affecting Solderability

The ability of a surface to be readily wetted by solder is influenced by numerous factors, primarily related to the surface condition and its history. Understanding these factors is crucial for maintaining solderability throughout the manufacturing and storage lifecycle.

ENIG Black PadSurface Finishes

PCBs and component terminations are coated with specific surface finishes primarily to protect the underlying copper from oxidation and provide a solderable surface. The type of finish significantly impacts initial solderability and shelf life. The common finishes include:

1. HASL (Hot Air Solder Leveling) / Lead-Free HASL: Molten solder (SnPb or Pb-free alloy) is applied and leveled with hot air.

• Pros: Low cost, good solderability, long shelf life (typically 12 months), robust process identifies board delamination issues.

• Cons: Uneven surface, not ideal for fine-pitch components (<20mil), potential for thermal shock, contains lead (standard HASL is not RoHS compliant).

2. ENIG (Electroless Nickel Immersion Gold): A layer of nickel followed by a thin layer of gold. Gold protects nickel from oxidation; solder bonds primarily to the nickel.

• Pros: Flat surface, good for fine pitch/BGA, excellent solderability, good electrical properties, RoHS compliant, long shelf life (12+ months). [4]

• Cons: Higher cost, potential for "black pad" (phosphorus enrichment at Ni/Au interface leading to brittle fractures), susceptible to corrosion if gold is porous.

3. OSP (Organic Solderability Preservative): A thin organic coating applied over copper.

• Pros: Low cost, flat surface, simple process, environmentally friendly, reworkable, RoHS compliant.

• Cons: Limited shelf life (typically 6 months), sensitive to handling/scratches, can be consumed during multiple reflow cycles, may require more active flux due to lower wetting force. Baking is generally not recommended.

4. Immersion Silver (ImAg): A thin layer of silver deposited chemically onto copper.

• Pros: Flat surface, excellent solderability, good for fine pitch, RoHS compliant, moderate cost.

• Cons: Limited shelf life (typically 6 months), tarnishes when exposed to air (requires anti-tarnish packaging), sensitive to handling, potential for silver whiskering, susceptible to creep corrosion.

5. Immersion Tin (ImSn): A thin layer of tin deposited chemically onto copper.

• Pros: Flat surface, good for fine pitch/press-fit, RoHS compliant, cost-effective.

• Cons: Limited shelf life (typically 6 months), forms Cu-Sn IMCs which grow over time and can affect solderability, susceptible to tin whiskering, sensitive to handling, process uses thiourea.

The choice of finish involves trade-offs between cost, solderability, shelf life, process compatibility, and specific application requirements.

Storage Conditions (Temperature, Humidity, Atmosphere, Time)

Component and PCB solderability degrade over time, influenced heavily by storage conditions:

• Humidity: Moisture absorption is a primary concern. It accelerates oxidation and corrosion, can cause delamination or blistering during soldering ("popcorning"), and may degrade substrate properties. IPC standards (e.g., IPC-1601A, J-STD-033) provide guidelines for moisture control, including maximum acceptable moisture content (MAMC), use of Moisture Barrier Bags (MBBs), desiccants, and Humidity Indicator Cards (HICs). Recommended storage is typically 40-65% RH, although lower humidity (≤5% RH) is better for sensitive components.

• Temperature: Higher temperatures accelerate degradation mechanisms like oxidation and IMC growth. Recommended storage temperature is typically 15-30°C. Fluctuations should be avoided.

• Atmosphere: Exposure to air (oxygen) causes oxidation. Contaminants in the air, such as sulfur compounds (causing silver sulfidation) or outgassing from packaging materials, can also degrade surfaces. Vacuum sealing or nitrogen storage can mitigate these effects.

• Time: Solderability generally decreases with storage time due to oxidation and IMC growth. Shelf life varies significantly by surface finish (e.g., 6-12+ months). Components older than 2 years are more likely to show degradation. However, studies suggest properly stored components can remain solderable for many years.

Aging and Oxidation

Aging encompasses the time-dependent degradation processes occurring during storage and service life. Oxidation is a primary aging mechanism affecting solderability.

Solder Joint defects due to Aging and Oxidation

Below are their details:

• Oxide Formation: Exposed metal surfaces (copper, nickel, tin, lead) react with oxygen to form oxide layers. These oxides act as a barrier, preventing molten solder from directly contacting and reacting with the underlying metal, thus inhibiting wetting.

• Impact: Even thin oxide layers can significantly degrade solderability. Thicker or more tenacious oxides require more aggressive fluxes or higher temperatures to remove, increasing process risks. Porous surface finishes can allow oxidation to penetrate to underlying layers (e.g., nickel oxidation beneath porous gold).

• IMC Growth: Another aging effect is the solid-state diffusion and growth of intermetallic compound (IMC) layers at the interface between the solder/finish and the base metal (typically copper). While necessary for bonding, excessive IMC growth, driven by time and temperature, consumes the solderable layer (e.g., tin) and can lead to embrittlement or reach the surface and oxidize, impairing solderability.

Contamination

Contamination on component leads or PCB pads is a major cause of poor solderability. Sources include:

• Handling: Oils, grease, salts from fingerprints/skin contact. Gloves should be used when handling sensitive surfaces.

• Process Residues: Flux residues from previous soldering steps, etching chemicals, resist residues, cleaning agent residues, and solder mask bleed. Inadequately cleaned residues can impede wetting or cause corrosion.

• Environmental: Dust, particles, airborne chemicals.

• Packaging: Outgassing from packaging materials (plasticizers, flame retardants).

Contaminants act as physical barriers preventing solder contact or interfere chemically with the wetting process. Even seemingly benign contaminants like pizza grease or hand cream can significantly degrade surface insulation resistance, especially if not exposed to reflow temperatures. Solderability testing directly assesses the impact of such real-world contamination present on the "as-received" (plus aged) surface.

Recommended Reading: PCB Surface Finish: The Ultimate Guide to Understanding and Choosing the Right Option

Key Industry Standards for Solderability Testing

Several industry standards provide detailed methodologies, parameters, and acceptance criteria for solderability testing, ensuring consistency and comparability across the supply chain.

The Automatic Soldering Machine Operation with PCB Board

Key standards include those from IPC, JEDEC, and military specifications.

IPC J-STD-002 (Component Solderability)

IPC/EIA/JEDEC J-STD-002, currently at revision E (J-STD-002E), is the primary industry standard for testing the solderability of component leads, terminations, lugs, terminals, and wires.

• Scope & Purpose: Prescribes test methods, defect definitions, acceptance criteria, and illustrations to verify component solderability meets requirements and hasn't been degraded by storage. It also includes resistance to solder dissolution testing, ensuring materials can survive actual assembly processes without excessive material loss.

• Key Methods: Defines several test methods for both SnPb and Pb-free processes:

1. Visual Tests: Test A/A1 (Dip & Look, Leaded), Test B/B1 (Dip & Look, Leadless), Test C/C1 (Wrapped Wire), Test S/S1 (Surface Mount Simulation)

2. Force Measurement Tests (Informative/Referee): Test E/E1 (Wetting Balance Pot, Leaded), Test F/F1 (Wetting Balance Pot, Leadless), Test G/G1 (Wetting Balance Globule)

3. Resistance to Dissolution: Test D

• Preconditioning: Specifies coating durability categories (1, 2, 3) linked to preconditioning methods (e.g., steam aging duration from 1 to 16 hours, or dry bake) to simulate aging effects. Category 2 (typically 1-hour steam or 4-hour bake) is often the default.

• Materials: Specifies standard solder alloys (e.g., Sn63Pb37 or Sn60Pb40 for SnPb; SAC305 default for Pb-free) and standard activated rosin fluxes (#1 for SnPb, #2 for Pb-free).

• Acceptance Criteria (Visual Tests): Generally requires ≥ 95% continuous solder coverage on the critical area of each termination (≥ 80% for exposed pads). Defects like non-wetting, dewetting, and pinholes exceeding 5% are cause for rejection.

IPC J-STD-003 (PCB Solderability)

IPC J-STD-003, currently at revision D (J-STD-003D), focuses specifically on testing the solderability of printed board surface conductors, attachment lands, and plated-through holes (PTHs).

• Scope & Purpose: Prescribes methods, definitions, criteria to verify PCB fabrication and storage haven't adversely affected the solderability of intended areas. Uses test coupons or board sections. Not intended to verify assembly success or design impact.

• Key Methods:

1. Edge Dip Test (Visual): Evaluates surface conductor/land wetting

2. Wave Solder Test (Visual): Simulates wave soldering

3. Surface Mount Simulation Test (Visual): Simulates reflow

4. Wetting Balance Test (Force Measurement): Quantitative evaluation

5. Solder Float Test (PTH Visual): Evaluates PTH solder fill

• Preconditioning/Durability: Specifies conditioning based on finish type (SnPb vs. Pb-free) and durability categories (e.g., Category 3/Category B involves multiple stress tests like steam aging). Some conditions involve steam aging, baking, and multiple stress cycles to replicate realistic use environments.

• Materials: Specifies solder alloys (SnPb or Pb-free like SAC305) and flux (often mildly activated for visual tests) based on the finish and test.

• Acceptance Criteria: Primarily visual, based on wetting percentage (e.g., ≥95% for many finishes/classes), dewetting limits, and PTH fill.

MIL-STD-883 Method 2003 (Microcircuit Solderability)

MIL-STD-883 is a comprehensive standard for microcircuit testing. Method 2003 specifically addresses solderability, often used as a reference condition for military and high-reliability applications.

• Scope: Evaluates solderability of microcircuit terminations (leads ≤ 0.125" dia) for SnPb eutectic solder assembly. This method tests if manufacturing yields components solderable for next-level assembly.

• Procedure: Performed in accordance with J-STD-002, but with specific details/exceptions mandated by Method 2003. Key steps include:

1. Preconditioning: Specific steam aging duration based on finish type (1 hr for non-tin/non-gold; 8 hr for tin/gold finishes per Rev G)

2. Flux Application: Standard activated rosin flux

3. Solder Dip (typically 245°C ± 5°C for SnPb)

4. Cleaning and Examination (10-20x magnification)

• Acceptance Criteria: ≥ 95% coverage of the dipped area by new, continuous solder; <5% total area of defects (pinholes, voids, non-wetting, dewetting).

Other Relevant Standards

• IEC 60068-2-69: International standard defining the Wetting Balance method for quantitative assessment of solderability on components and PCBs.

• JEDEC JESD22-B102: Provides test methods for component solderability, often referenced alongside J-STD-002 for consumer electronics and commercial products.

• MIL-STD-202 Method 208: Military standard specifying procedures for evaluating the solderability of component leads, widely used for traditional electronic components.

Standard Comparison and Nuances

While significant overlap and cross-referencing exist, particularly between J-STD-002 and the MIL standards, crucial differences remain. For instance, MIL-STD-883 Method 2003 mandates specific steam aging durations based on finish type, whereas J-STD-002 offers more categories and options, often defaulting to a less severe condition. This difference in preconditioning reflects varying expectations for coating durability and shelf life, acting as a "guard band" against marginal finishes. The choice of standard and specific test conditions (like preconditioning) significantly impacts the stringency of the evaluation and must align with contractual requirements or product reliability goals.

Repairing and Soldering the Graphics Card, Printed Circuit Board

Furthermore, there's a practical difference in how results from various methods are often applied! Visual criteria (e.g., ≥95% coverage) from Dip & Look or Simulation tests are commonly used for pass/fail decisions in quality control. In contrast, the quantitative data from Wetting Balance tests, despite suggested criteria existing in standards like J-STD-002/003, are frequently utilized more as an engineering tool for characterization, comparison, and troubleshooting due to perceived variability or lack of universally adopted acceptance limits.

Below is the table for the overview of major solderability test standards:

The Wetting Balance tests in J-STD-002/003 often have suggested force criteria but are frequently used for engineering evaluation.

Recommended Reading: Comparing the Contrasts: Lead Based vs. Lead-Free Solder

Conclusion

Solderability, the ability of a surface to be wetted by molten solder, is vital for assembly yield, electrical performance, and long-term reliability in electronics manufacturing. Solderability testing, using methods like the Wetting Balance and Dip and Look tests, ensures early detection of issues caused by aging, oxidation, contamination, or poor surface finishes. Standards such as IPC J-STD-002, IPC J-STD-003, and MIL-STD-883 Method 2003 provide consistent frameworks for evaluation. Proactive testing not only prevents costly failures but also strengthens quality control, ensuring durable, high-performance assemblies in increasingly demanding electronic applications.

Frequently Asked Questions (FAQ)

Q: How often should solderability testing be performed?

A: The frequency depends on risk assessment. Key times include: incoming inspection for critical components, new suppliers, or parts with old date codes (e.g., >2 years); periodic checks for inventory stored for extended periods; qualification of new materials or process changes; and as required by customer contracts. High-reliability applications may demand more frequent testing.

Q: What's the difference between non-wetting and dewetting?

A: Non-wetting occurs when molten solder fails to adhere to the surface at all, leaving the base metal exposed. Dewetting occurs when solder initially wets the surface but then retracts, forming irregular mounds and potentially leaving a thin solder film, but usually without exposing the base metal.

Q: Can solderability testing detect counterfeit components?

A: It can be an indicator. Counterfeit components, especially those with resurfaced or altered leads, may exhibit different wetting behavior (e.g., speed, force, final coverage percentage) compared to genuine parts, particularly after undergoing standardized preconditioning like steam aging.

Q: How do I interpret borderline Dip & Look results (e.g., close to 95% coverage)?

A: Industry standards typically define a clear pass/fail threshold (e.g., ≥95% coverage). Results near the threshold indicate marginal solderability. Actions could include increasing the sample size for statistical confidence, performing a referee dip if allowed by the standard (e.g., J-STD-002), using the quantitative Wetting Balance test for more detailed data, and investigating potential root causes like storage conditions or handling.

Q: Which test method is better: Wetting Balance or Dip & Look?

A: Neither is universally "better"; they serve different purposes. Wetting Balance provides precise, quantitative data ideal for engineering analysis, material comparisons, and detailed troubleshooting, but it's slower, more complex, and requires skilled interpretation. Dip & Look is faster, less expensive, uses standardized visual criteria suitable for routine QA/QC checks and pass/fail decisions, but is qualitative and subjective.

Q: How does lead-free solder affect solderability testing?

A: Lead-free alloys (like SAC compositions) generally have different wetting characteristics (often slower wetting speeds) and require higher soldering temperatures compared to SnPb solder.1 Standards like J-STD-002 and J-STD-003 specify distinct test parameters (designated A1, B1, etc.) for lead-free testing, including appropriate solder alloys, potentially more active fluxes (e.g., Flux #2 in J-STD-002), and adjusted temperature profiles or dwell times.

Q: How does a solder pot help in the soldering process?

A: A solder pot provides a controlled environment for immersion during the soldering process. Over time, testers use wetting balance analysis to evaluate how materials interact with solder during the process.

References

[1] Wevolver. Lead vs. Lead-free Solder: Which is better for PCB manufacturing? [Cited 2025 April 16] Available at: Link

[2] ACS Publications. Enhancing Liquid–Vapor Phase-Change Heat Transfer with MicroNano-Structured Surfaces [Cited 2025 April 16] Available at: Link

[3] ResearchGate. Contact Angle Measurements of Sn-Ag and Sn-Cu Lead Free Solders on Copper Substrates [Cited 2025 April 16] Available at: Link

[4] Venture MFG. PCB Surface Finish Types [Cited 2025 April 16] Available at: Link
